Distributed Inference Testbed¶

An experimental testbed for partitioned inference of deep neural networks and large language models across resource-constrained edge devices.

Five Raspberry Pi 4 boards on a dedicated IEEE 802.11ac wireless network, an edge server that hosts the access point, and a web application that drives every experiment end to end: scenario definition, concurrent Secure Shell (SSH) dispatch, layer-by-layer profiling under controlled compute and network conditions, measurement collection, and partition optimisation. Everything also runs on a single machine with no hardware at all.

The repository implements the testbed described in Chapter 3 ("Experimental Testbed Description") and Appendix B ("Testbed Implementation Details") of the PhD thesis Dynamic Partitioning and Resource Orchestration for AI Model Deployment in Resource-Constrained Wireless Edge Networks (Dimitrios Kafetzis, Athens University of Economics and Business, 2026). The thesis is the specification: every file, script and output name it cites is the name used here.

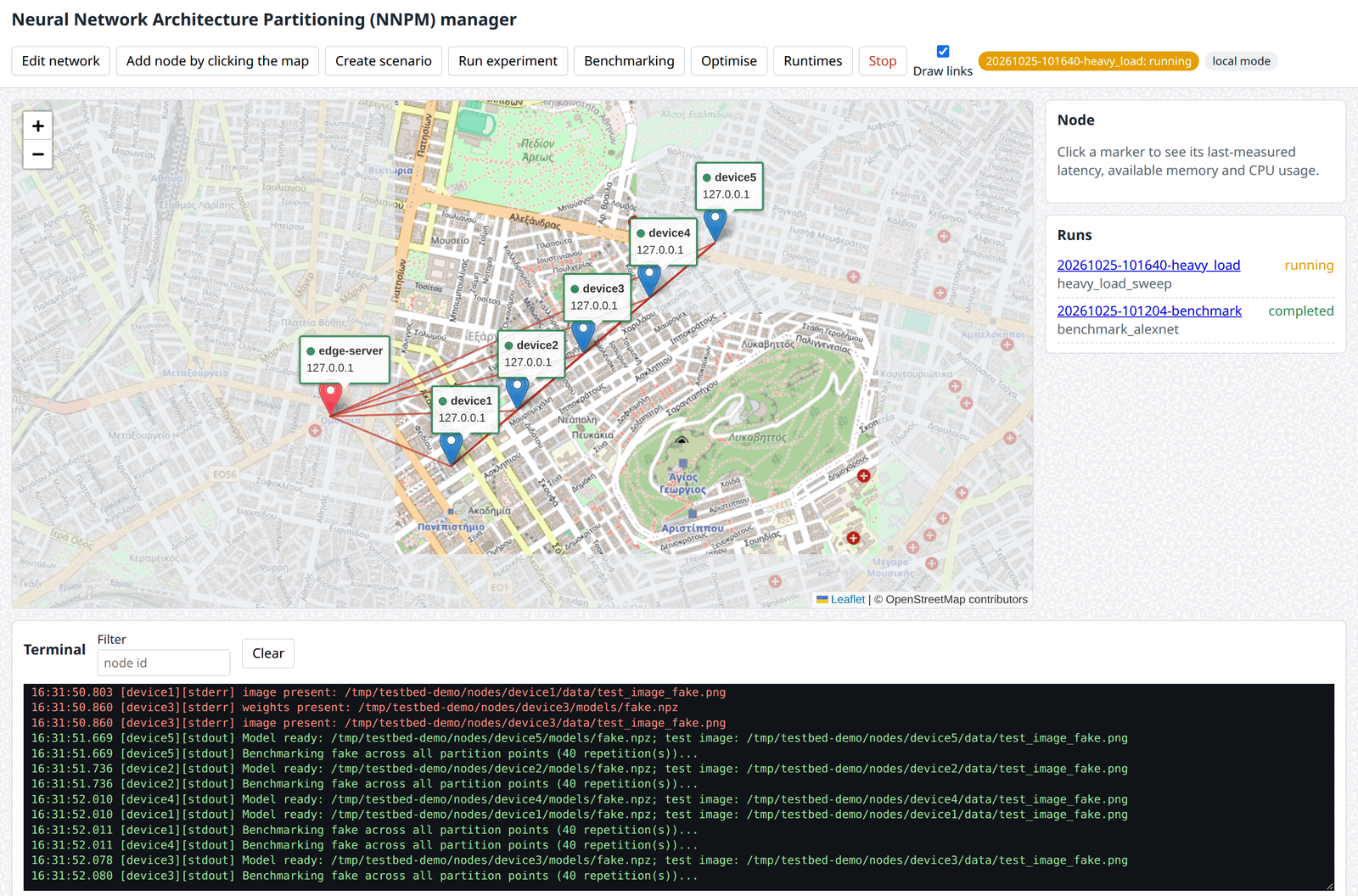

The NNPM web application in local mode: five simulated devices and the edge server on the map, a completed benchmarking run and a running experiment, and the merged live log of the devices in the terminal.

Highlights¶

Complete experiment pipeline. One scenario file describes the model, the devices, the repetitions, the scheduling policy of the edge server, and per node the network conditions, the compute load and the hardware constraints. The pipeline applies it, profiles, collects, aggregates, optimises and tears everything down, in seven stages with a journal that undoes every change in reverse order, also on failure and after a restart.
Controlled conditions on real hardware. Traffic-control network emulation (tc-netem: delay with constant, uniform or square-wave variation, jitter, loss, rate cap, per destination), background traffic with iperf3, a duty-cycle compute load generator with the light, moderate and heavy regimes of the thesis, and hardware heterogeneity through cpufreq caps, cgroups v2 memory limits and thread counts.
Fine-grained measurement. Per-layer latency, memory and operation counts; per-phase timing of partitioned inference (local, transmission, queueing, remote); a 1 Hz resource monitor; INA260 power traces with energy and energy-delay product; ping latency and iperf3 throughput. All traces are aligned on an NTP-synchronised common origin.
Partition optimisation. The analytical delay model of the thesis for Round-Robin (RR) and Shortest-Job-First (SJF) scheduling at the edge server, with greedy, exhaustive and trend-based search, and a plug-in interface for new algorithms.
The NNPM web application. The Neural Network Architecture Partitioning (NNPM) manager: an interactive map of the topology with three-ping reachability probes every two seconds, click-to-add and draggable nodes, distance-derived link latencies, dialogs for scenario creation, benchmarking and optimisation, a live merged terminal, a results browser and a stop button that tears down cleanly.
Daemonless and reproducible. Nothing stays resident on a device beyond the SSH server: every device-side process is started for the duration of an experiment and stopped at its end. Scenarios are versioned and replayable, random seeds are set on every node, dependencies are hash-pinned per role and platform, and provisioning installs from a versioned local package mirror with a verifiable manifest.
Runs without hardware. A local mode simulates every node on one machine with a fake model, dry-run shaping and a fake /sys tree. The whole pipeline, the web application and the provisioning scripts are exercised this way in continuous integration.
Extensible. Any tf.keras.applications classifier and any Hugging Face decoder of a known family (GPT-2, Llama, Mistral, Qwen2, Gemma) run through generic adapters with automatic cut points; model parameters, input sources (files, image folders with labels, prompts) and a partition-equivalence check are scenario fields; a model catalogue with checksums holds the weights. See docs/adding_a_model.md.
Runtime plug-ins. An inference runtime is a plug-in with a scenario block, readiness checks, maintenance actions and a results parser, all driven from NNPM. The author's HeadSplit runtime for head-level partitioning of decoder-only LLMs is the first: installed from the mirror at a pinned commit, prepared (profile, checkpoint) and run from the web application under the testbed's shaping, load, monitors and metadata. See docs/adding_a_runtime.md.

Architecture¶

flowchart LR
  subgraph ES["Edge server (Ubuntu 22.04, x86_64)"]
    NNPM["NNPM web application<br/>gui/"]
    ORCH["Orchestration and scenarios<br/>src/orchestration/"]
    SSH["Concurrent SSH dispatch<br/>src/network/ssh_executor.py"]
    AGG["Aggregation and optimisation<br/>src/benchmarking/, src/partitioning/"]
    SRV["Partitioned-inference service (RR, SJF)<br/>src/inference/server.py"]
    AP[("Access point, DHCP and DNS,<br/>NTP server, package mirror")]
  end
  subgraph DEV["Edge device i (Raspberry Pi 4, Raspberry Pi OS 64-bit)"]
    PROF["Profiler and inference client<br/>src/models/, src/inference/client.py"]
    MON["Resource, power and latency monitors<br/>src/testbed/, src/network/"]
    CTRL["Load generator, tc-netem, cpufreq, cgroups<br/>src/testbed/"]
  end
  NNPM --> ORCH --> SSH
  SSH -- "management network (Ethernet)" --> PROF
  SSH -- "management network (Ethernet)" --> MON
  SSH -- "management network (Ethernet)" --> CTRL
  PROF -- "data plane (IEEE 802.11ac)" --> SRV
  PROF -. "result files" .-> AGG
  MON -. "traces" .-> AGG

The testbed has three layers. The NNPM manager (web application and orchestration package) runs each experiment from start to finish. The measurement infrastructure runs on the devices only while an experiment is in progress: profiler, inference client, resource and power monitors, latency and throughput tools. The system runtime is the operating system and the frameworks installed by provisioning from a local mirror. Management traffic (SSH, result collection, NTP, packages) uses a wired network; inference traffic, latency measurement and shaping use the wireless data plane, so the two never interfere. The full description, stage by stage, is in docs/architecture.md.

Supported models¶

Model	Framework	Granularity	Used in
AlexNet	TensorFlow	11 stages (the partition points of Chapter 4)	Chapter 4
VGG-16, ResNet-50	TensorFlow	Keras layers and blocks	Chapter 4
GRU QoE predictor	TensorFlow	recurrent layers	Chapter 4
MobileNetV2, EfficientNet-B0, DenseNet-121, any `tf.keras.applications` model	TensorFlow	single-tensor cuts of the functional graph, found automatically and thinned to stages of comparable work	extensions
GPT-2	PyTorch	decoder layers; per-head, projection and feed-forward timing through forward hooks	Chapter 5
TinyLlama-1.1B	PyTorch	decoder layers; head-wise decomposition	Chapters 5 and 6
Llama 3.2 1B, Qwen2.5 0.5B, any Hugging Face decoder of the GPT-2, Llama, Mistral, Qwen2 or Gemma family	PyTorch	decoder layers; head-wise decomposition from the family table	extensions
TinyLlama-1.1B on HeadSplit	PyTorch RPC (external runtime)	heads across devices with inter-layer speculation	Chapter 6
`fake`	none	configurable synthetic stages, for tests and local mode

New models are registered through src/models/registry.py (docs/adding_a_model.md); new partitioning algorithms through src/partitioning/algorithms/; new runtimes through src/orchestration/runtimes/ (docs/adding_a_runtime.md). Weights live in a model catalogue with checksums (examples/models.yaml, python -m src.models.weights).

Getting started¶

Without hardware (five minutes)¶

git clone https://github.com/Dimitrios-Kafetzis/Distributed-Inference-Testbed.git
cd Distributed-Inference-Testbed
uv venv .venv --python 3.11
uv pip install --python .venv/bin/python --require-hashes -r requirements/dev.lock

# The fast test suite: fakes, dry runs and local mode.
.venv/bin/pytest -m "not slow"

# A whole experiment on simulated nodes, with shaping and load in dry-run mode.
.venv/bin/python -m src.orchestration.experiment run \
    --scenario examples/scenarios/local_demo.yaml --local
ls .local_testbed/results/latest/

# The NNPM web application with simulated nodes, at http://127.0.0.1:8001/
.venv/bin/python -m gui.app --local --devices 5

Without uv: python3.11 -m venv .venv && .venv/bin/pip install --require-hashes -r requirements/dev.lock.

On the hardware¶

Assemble the testbed as in the setup guide: five Raspberry Pi 4 boards on an open rack, an edge server with a USB IEEE 802.11ac adapter for the isolated access point, and an Ethernet switch for the management network. The bill of materials is in the guide.
Edge server. Copy config.example.yaml to config.yaml and nodes.example.json to nodes.json, edit them, then run scripts/provision/provision_edge_server.sh --allow-upstream followed by scripts/provision/build_mirror.sh wheels. This configures the access point, DHCP and DNS, the NTP server, the package mirror and the NNPM service.
Devices. Flash Raspberry Pi OS Bookworm 64-bit, run scripts/provision/prepare_image.sh <node id> <boot partition>, boot the board on the switch, then run scripts/provision/provision_device.sh <node id> (after build_mirror.sh apt <node id> once). Every device is installed from the mirror only.
Check. Open http://<edge server management address>:8001/; every marker should be green within a few seconds. Run scripts/base_station/run_full_benchmarking.sh examples/scenarios/baseline.yaml and find the three output files in results/latest/.
Validate. Work through the hardware validation checklist: the physical checks that the test suite cannot perform, each with its expected outcome.

Every provisioning script accepts --dry-run and prints the commands it would run.

Running experiments¶

A scenario is one YAML or JSON object. The example below profiles AlexNet on four devices under different compute loads, runs partitioned inference at five partition points, and sweeps the scheduling policy of the edge server:

name: ch4_validation
model: alexnet
devices: [device1, device2, device3, device4]
repetitions: 5
seed: 2024
edge_server: {policy: SJF, nominal_frequency: true, profile_capacity: true}
inference: {enabled: true, partition_points: [0, 2, 4, 8, 11], repetitions: 50}
load:
  device2: {mode: processes, processes: 1}
  device3: {mode: processes, processes: 2}
  device4: {mode: processes, processes: 3}
optimisation: {enabled: true, algorithm: greedy, objective: total_delay}
sweep: {path: edge_server.policy, values: [RR, SJF]}

Run it from NNPM (Create scenario, then Save and run) or from the command line:

scripts/base_station/run_experiment.sh examples/scenarios/ch4_validation.yaml
scripts/base_station/run_full_benchmarking.sh examples/scenarios/baseline.yaml   # profiling only, no load or shaping
scripts/base_station/clean_devices.sh                                            # undo a run interrupted by a crash
cd results/latest && ../../.venv/bin/python -m src.partitioning.delay_optimizer \
    calculated_max_partition_points.json total_averages_of_benchmark_results.json \
    final_latencies_averages.json --scheduling_algorithm SJF --mode optimize     # optimise a finished run again

Every run writes one directory under results/, with the scenario version, the run metadata (software versions, hardware facts and NTP status of every node, recorded before any change), the journal, the merged log, the raw records and traces, and the three aggregated outputs the thesis names: total_averages_of_benchmark_results.json, calculated_max_partition_points.json and final_latencies_averages.json. The scenario reference lists every field with its default; the results format describes every file. Example scenarios for the Chapter 4 validation and the Chapter 6 heterogeneity and round-trip-time studies are in examples/scenarios/.

Repository layout¶

Path	Content
`src/common/`	infrastructure used everywhere: injectable command runners, clocks and `/sys` access, tagged detached processes, run directories and the run journal, seeds, the coordinated start signal, run metadata
`src/network/`	SSH transport and concurrent dispatch, result collection, latency, throughput and power measurement
`src/testbed/`	device-side control: load generator, tc-netem shaping, background traffic, heterogeneity, resource monitor, edge-server frequency policy
`src/models/`	model adapters (TensorFlow and PyTorch, generic Keras-applications and Hugging Face decoder adapters), analytical operation counts, the per-layer profiler, the device-side inference entry point with the partition check, input sources, the model catalogue
`src/inference/`	the partitioned-inference service of the edge server (RR and SJF), its wire protocol and the device client
`src/benchmarking/`	measurement records and schema, aggregation over repetitions, trace merging, partition feasibility
`src/partitioning/`	the delay model, the search algorithms and `delay_optimizer.py`
`src/orchestration/`	scenarios (schema, versions, sweeps), the experiment pipeline, local mode, the map rule, the runtime plug-ins (testbed, HeadSplit)
`src/provisioning/`	template rendering and the mirror manifest used by the provisioning scripts
`gui/`	the NNPM web application: Flask blueprints, the page, vendored Leaflet
`scripts/`	`base_station/` (run and clean), `end_device/` (profiling, transfer, shaping), `provision/` (image, edge server, devices, mirror)
`docs/`	documentation and JSON Schemas
`examples/scenarios/`	example scenarios, including the Chapter 4 and Chapter 6 procedures
`data/sample/`	synthetic sample output files, labelled as such
`requirements/`	direct dependencies and hash-pinned lock files per role and platform
`tests/`	the pytest suite, with local-mode integration tests and golden files

Documentation¶

The documentation is published as a website at https://dimitrios-kafetzis.github.io/Distributed-Inference-Testbed/ (built from docs/ with MkDocs on every push) and lives in the repository:

Document	Content
NNPM tutorial	a guided tour of every function of the web application, with screenshots taken in local mode
Architecture	the three layers, an experiment stage by stage, daemonless operation, local mode
Installation	installing from the lock files on the edge server, the devices and a development machine; the version table
Setup guide	hardware and bill of materials, physical layout, networks and addressing, operating systems, access point, NTP, power sensors, mirror, provisioning order
NNPM user guide	the web application: map, probes, topology editing, dialogs, sweeps, run summary page, Runtimes dialog, terminal, local mode, HTTP interface
Scenario reference	every scenario field with its default
Results format	the run directory and every record format
Module reference	every module and script with its command line
HeadSplit integration	the optional external LLM runtime: configuration, preparation from NNPM, what a run does
Adding a model, Adding a runtime	how the testbed is extended: adapters, parameters, weights and inputs; the runtime plug-in interface
Hardware validation checklist	what to verify on the physical testbed, with expected values
Provisioning, Dependencies, Sample data	the provisioning scripts, the lock files, the synthetic samples

Quality assurance¶

Check	Scope
`pytest -m "not slow"`	330 tests: unit tests with fake runners, transports, clocks and `/sys`; golden-file tests of the provisioning command plans; local-mode integration tests of the whole pipeline, the web application and the HeadSplit runtime against stub scripts
`pytest -m slow`	15 tests that build and run the real TensorFlow and PyTorch models on the CPU (the thesis models, the Keras applications, every decoder family)
`ruff check`, `ruff format --check`	formatting and lint
`mypy --strict`	`src/` and `gui/`
`shellcheck -x`	every shell script
`tests/test_thesis_names.py`	every path, symbol and output name the thesis cites exists
`tests/test_no_hardcoded_literals.py`	no addresses or home directories in code
`tests/test_docs_links.py`	every relative link in the documentation resolves

The continuous-integration workflow runs all of the above on every push and pull request, plus the local-mode quick start and a dry run of the provisioning scripts. Tests marked hardware need the physical testbed and never run in continuous integration.

Requirements¶

Component	Minimum supported	Pinned in the lock files (thesis, Appendix B, Table B.1)
Edge devices	Raspberry Pi 4 Model B, Raspberry Pi OS 64-bit	Bookworm 64-bit, Python 3.11
Edge server	Ubuntu 22.04 LTS, x86_64	Ubuntu 22.04 LTS, Python 3.11
Python	3.11	3.11
TensorFlow	2.8.0 (CPU)	2.15.1
PyTorch, Transformers	2.1.2 (CPU), 4.36	2.1.2, 4.46.3
Flask, Paramiko	2.2.0, 2.11 (edge server only)	3.1.3, 5.1.0
Time synchronisation	NTP server on the edge server, clients on the devices	chrony, configured by provisioning

The complete table and the installation commands per role are in docs/installation.md.

Citing¶

If you use this testbed in your research, please cite the thesis and the software. Citation metadata in Citation File Format is in CITATION.cff; GitHub renders it under "Cite this repository".

@phdthesis{kafetzis2026thesis,
  author = {Kafetzis, Dimitrios},
  title  = {Dynamic Partitioning and Resource Orchestration for {AI} Model Deployment
            in Resource-Constrained Wireless Edge Networks},
  school = {Athens University of Economics and Business},
  year   = {2026}
}

@inproceedings{kafetzis2024demo,
  author    = {Kafetzis, Dimitrios and Koutsopoulos, Iordanis},
  title     = {Demo: An Experimental Platform for {AI} Model Partitioning on Resource-constrained Devices},
  booktitle = {Proceedings of the 25th International Symposium on Theory, Algorithmic Foundations,
               and Protocol Design for Mobile Networks and Mobile Computing (ACM MobiHoc)},
  year      = {2024},
  pages     = {375--376}
}

This repository continues the author's earlier DNN-Partitioning-and-Offloading-Testbed, first presented as a demonstration at ACM MobiHoc 2024. The code was rewritten so that it implements the testbed exactly as the thesis describes it; the earlier repository remains available as reference material. HeadSplit, the author's runtime for head-level LLM partitioning with inter-layer speculation (Chapter 6), is integrated as an optional external component.

Contributing, security and licence¶

Contributions are welcome: see CONTRIBUTING.md for the development set-up, the checks that must pass and the conventions of the code base. To report a vulnerability, follow SECURITY.md. Changes between releases are listed in CHANGELOG.md.

The software is released under the MIT Licence, see LICENSE. Vendored third-party software and the map data shown in the screenshot are credited in THIRD_PARTY_NOTICES.md.
